MACFAB 200 Multi Baler







Overview

  • Saves handling time with multiple chambers: free to load while other chamber compacts
  • Multiple chambers offer an efficient way of separating different materials before baling
  • Roller guided head for ease of movement
  • Retaining claws to prevent spring back
  • Top loading machine
  • Suitable for areas with height restrictions
  • Fully automated bale ejector: simplifies removal of bale

Optional Extras

  • Additional chambers may be added to this baler. (Up to six)
  • Available in either 110/380/400 volts power supply.

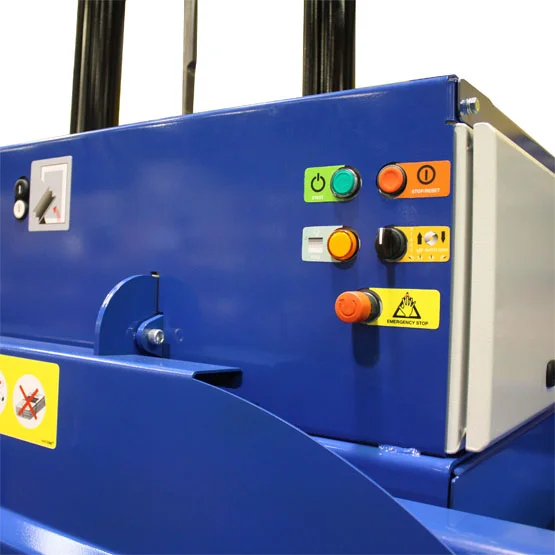

  • PLC panel with automatic compaction cycles and bale full light.




Technical Information

Machine Specifications

Height - 2.469m

Width - 3.032m

Depth - 1.269m

Weight - 1400kg

Transportation Ht - 2.469m

Power Supply - 220 - 240 V

Phase Type - Single phase

Motor - 2.2kW 16A

Pressing Force - up to 16 Ton

Noise Level - 74 decibels

Bale Dimensions

Height - 1.000m

Width - 1.740m

Depth - 0.800m

Weight - up to 200kg

Cycle Times - 34 seconds

Loading Aperture Sizes

Height - na

Width - 1.074m

Depth - 0.800m
